Manual Reset

TYPE 24N / 24X


Type 24N / 24X

1/2" Bimetallic Disc Thermostat

Manual Reset

24N: 125VAC / 15A, 250VAC / 10A
24X: 125VAC / 0.1A, 30VDC / 0.1A

Standard: UL-E43273, CSA-LR67166

Item
Specifications

Basic Features

Manual Reset, SPST Bimetallic Disc Thermostat
Operation

A: Contacts open on temperature rise
Electrical Rate

Resistive: 125 VAC / 15A, 250VAC / 10A
Temperature Rating

Max Operating Temp 150°C (302°F)
Calibration Method

Hot Oven circulating System
Insulation Resistance

No less than 1,000 M(Omega) at DC 500V with Megger
Dielectric Strength

AC 1,500 Vfor 1 minute or AC 1,800 V for 1 second

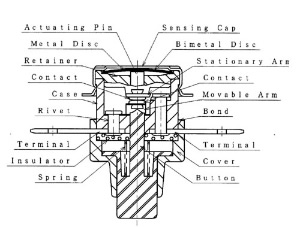

Structure

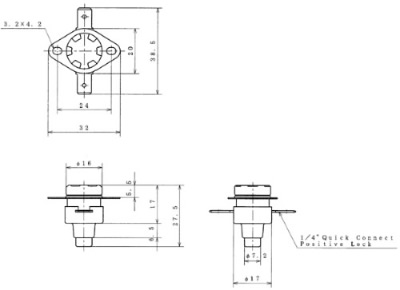

Dimensions
