Automatic Reset

TYPE 50S / 50N

Type 50S / 50N

1/2" Bimetallic Disc Thermostat

Automatic Reset / Phenolic Case / Clip-On

50N: 25 VAC/ 15A, 250VDC/ 10A (Phenolic case)

50S: 125 VAC/ 6A, 250VAC/ 3A (Phenolic case)

Standard: UL-E43273, CSA-LR67166

Item
Specifications

Basic Features

Automatic Reset, SPST Bimetallic Disc Thermostat
Operation

A: Contacts open on temperature rise
B: Contacts close on temperature rise
Electrical Rate

Resistive: 125 VAC/15A, 250VAC/10A
Temperature Rating

Max Operating Temp 150°C (302°F)
Calibration Method

Hot Oven circulating System
Insulation Resistance

No less than 1,000 M(Omega) at DC 500V with Megger
Dielectric Strength

AC 1,500 Vfor 1 minute or AC 1,800 V for 1 second


Structure

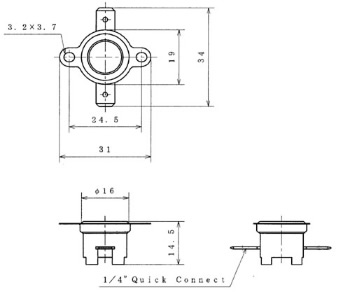

Dimensions
Back to General Specifications-Automatic Reset
