Automatic Reset - Type 11N, 11S, 10N

Automatic Reset
TYPE 11N / 11S / 10N
Type 11N / 11S	1/2" Bimetallic Disc Thermostat
	Automatic Reset / Phenolic Case / Low Profile
	11S: 125 VAC/ 6A, 250VAC/ 2A
	11N: 125 VAC/ 15A, 250VAC/ 10A
	Standard: UL-E43273, CSA-LR67166

Type 10N	1/2" Bimetallic Disc Thermostat
	Automatic Reset / Ceramic Case / Low Profile
	10N: 125 VAC/ 15A, 250VAC/ 10A
	Standard: UL-E43273, CSA-LR67166
Item	Specifications
Basic Features	Automatic Reset, SPST Bimetallic Disc Thermostat
Operation	A: Contacts open on temperature rise B: Contacts close on temperature rise
Electrical Rate	Resistive / Inductive: 125 VAC/15A, 250VAC/10A
Temperature Rating	Type 11N/11S: Max Operating Temp 150°C (302°F) Type 10N: Max Operating Temp 230°C (446°F)
Calibration Method	Hot Oven circulating System
Insulation Resistance	No less than 1,000 M(Omega) at DC 500V with Megger
Dielectric Strength	AC 1,500 Vfor 1 minute or AC 1,800 V for 1 second

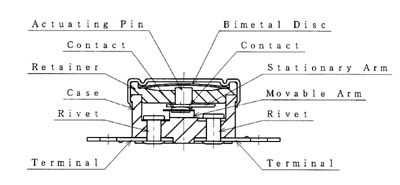

Structure	Dimensions

Back to General Specifications-Automatic Reset
