Manual Reset Thermostats

Type 15N
Type 15N

Type 15N

Hover to enlarge image

Standard: MITI(JET) J-58
UL 60730-1, -2-9 UL File No. E201152
CAN/CSA E730-1, -2-9 C-UR
DIN EN 60730-1, -2-9 VDE Licence No. 40019831

Item Specifications
Basic Features SPST Manual reset
Operation A: Contacts open on temperature case
Not automatic reset
Electrical Rate AC125V / 15A, AC250V / 10A
Temperature Rating Operating temperature Max. 250°C (482°F)
Calibration Method Hot & cold air circulation system
Insulation Resistance Not less than 1,000 M(Omega) / DC 500V
Dielectric Strength Not less than AC 1,500V / 1min. or AC 1,800V / 1sec.

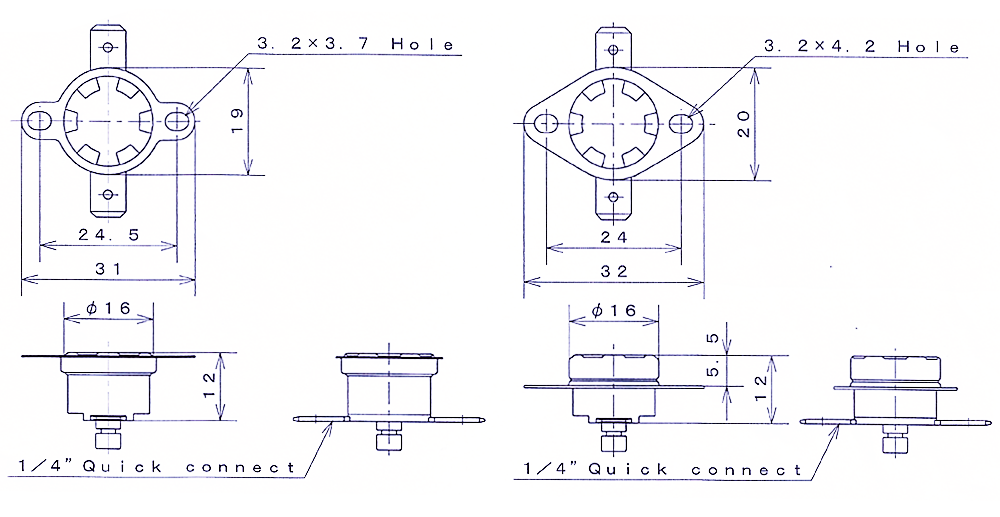

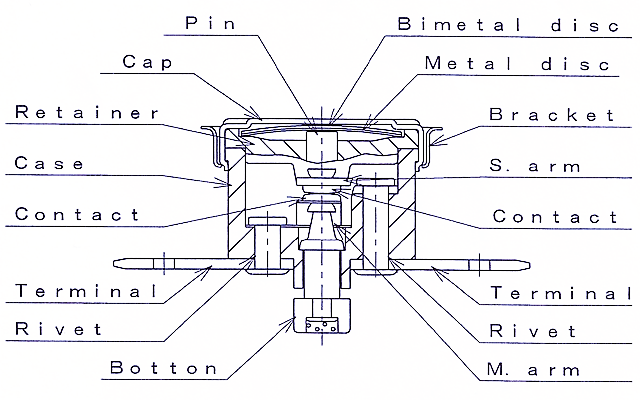

Structure Dimensions
